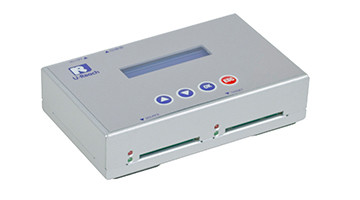

U-Reach Intelligent 9 CF Silver 1 Target

$319.00 (inc GST) $290.00 (exc GST)
SKU:
UR902S
Weight:
2.00 KGS
Availability:
Usually ships within 1-2 weeks
Shipping:
Calculated at checkout
Quantity:

Product Description


Features:

  • Stand-alone, FPGA-based operation (Non PC-based).
  • Speed transfers up to 3.9GB/min.
  • Dedicated bandwidth enables high-volume duplication without speed degradation.
  • Quick copy (Data & System): Supports Windows (NTFS), FAT16/32/64, and Linux (ext2/3/4).
  • Bit-for-bit copy mode which copies exactly like the master device.
  • Supports all proprietary and unknown formats.
  • Data Sanitization: quick erase, full erase, and DoD erase.
  • Supports “quick copy” for Linux (ext2/ext3/ext4), NTFS and FAT16/32.
  • Data Sanitization: quick erase, full erase, and DoD erase.
  • Supports CFast devices (via adapter)
  • Can handle the largest CF card capacity on the market

The new CF1-1 duplicator was designed with diversified media compatibility and high-speed performance in mind to not only flawlessly duplicate large capacity targets, but it is also portable so that you can copy CF cards anywhere. The user-friendly interface offers stress free operation with no steep learning curve. Its ergonomic design facilitates efficient operation through simpler insertion and removal of flash cards and the new design allows for better space utilization.

The Intelligent 9 CF duplicator is not only an efficient duplicator, but also has several ingenious smart device check functions: flash device quality check, real capacity, speed and device formatting.

Ultrahigh transmission speed

The U-Reach CF duplicator can copy at up to 3.9GB/min depending upon the maximum read/write speeds of the CF cards used.


Real multitask processing capability

Whether you are using copy, compare or format, each feature is independently executed. Each flash slot has an independent processing unit.

Non-PC based, with no risk of virus infection

One touch copy. Real time information displayed on the LCD screen

Ultrahigh speed bit-for-bit hardware comparison

Small footprint design allows for portability

Technical Specs

Model UR902S
Target 1:1
Specification
Format Supported Quick Copy: FAT16/32/64, Windows (NTFS), and Linux (Ext2 / Ext3 / Ext4)
Whole Media Copy: All Formats, including proprietary formats
Operating Type Stand-alone
Operation system supported All (Windows, Linux, Other stand-alone systems)
Language Support English, Japanese
Display Backlit Monochrome LCD Display
LEDs 2 LED (Red/Green) Indicators per Port
Control Button 4 push buttons(▲, ▼, OK, ESC)
Compatibility Flash Devices Compatible CF Type I/II./CFast (with required adapter)
Maximum Speed Supported 3.9GB/min
Copy Function Quick Copy Yes
Whole Media Copy Yes
Asynchronous Duplication Yes
Format Function Formats device to FAT16 or FAT32
Power Supply 5V 2A DC Adapter
Operating Humidity Working 5°C ~ 45°C
Storage (-)20℃~85℃
Temperature Extremes Working 20% ~ 80%
Storage 5% ~ 95%
Regulations FCC, CE, RoHS
Dimensions and Weight 11*15*3.5 cm, 500g
