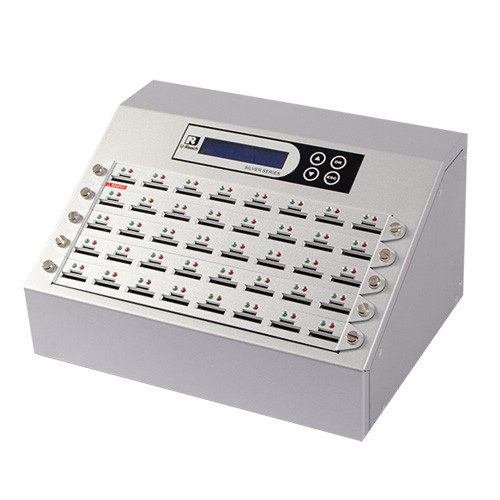

- U-Reach Intelligent 9 SD/mSD Silver 39 Target
Product Description
Features:
- Standalone, no PC required to operate the SD/MicroSD duplicator.
- High speed copy reaches 2GB/min on each port with up to 120 ports.
- The SD & MicroSD card can have a capacity up to largest size available on the market.
- Supports all types of data copy formats while executing bit-for-bit duplication.
- Supports "Quick copy" for Linux (ext2/ext3/ext4), NTFS and FAT16/32.
- Easy quick swap SD module maintenance.
The most cutting edge in duplication technology, our Intelligent 9 series SD/Micro SD duplicator is professional, standalone and efficient. It can duplicate a full range of SD/MicroSD memory cards starting from 7 and up to 119 targets. Speed and flexibility are key factors in satisfying customer needs. Effortless use means a PC or other software are not required; the SD/MicroSD memory card duplicator provides a reliable, worry-free copy environment for users without the risk of virus corruption. This Combo SD/MicroSD duplicator series is integrated with a high-speed compare function to ensure data copies with 100% accuracy. It also boasts quick format capabilities. These features greatly increase efficiency and production productivity.
The Intelligent 9 SD/MicroSD memory card duplicator is not only an efficient duplicator, but also has several ingenious smart device check functions: flash device quality check, real capacity, speed and device formatting.
The Intelligent 9 Combo SD/MicroSD duplicator is an economical solution for data copy and distribution via SD/MicroSD memory card. It contains smart, reliable and beneficial functions that provide an outstanding performance and quality that will save you time and money.
Impeccable High Speed
U-Reach's duplicator can copy up to 2GB/min on all devices, simultaneously and without any speed degradation as number of targets increase. Actual speed achieved is determined by the SD/MicroSD card write speeds.
2 kind of Copy Modes
- Quick Copy: Only copies data formatted in NTFS, Linux (ext2/ext3/ext4) and FAT 16/32/64.
- Whole Media Copy: Copies all data format during bit-for-bit duplication.
Easy Maintenance
With a specially redesigned and improved structure, users can easily change the sockets in 3 simple steps, which takes roughly 1 minute.
Powerful H5 Flash Quality Checking Tool
H5 offers:
- Highest efficiency: checks the bulk quantity all at the same time
- Shows quality testing results
- Self-setting standard
- Sets a limitation on the bad sector quantity
- Sets the minimum reading speed
- Sets the minimum writing speed
Flash speed and capacity filtration
Effortless Media Insertion and Removal
Guide rails to make flash insertion and removal easier, which also greatly enhances production efficiency.
Ergonomic & Compact Dimension
The ergonomic dimension is smaller than the traditional Flash Duplicator by 50% to 70%.
Real-time PC monitoring
- Monitor and control the real-time status via PC.
Other Features:
- New advanced Multi-Core processor.
- Completely standalone Flash duplicator, no computer required.
- Strict bit-for-bit comparison further increases the reliability of duplication.
- User friendly interface with real time information LCD display.
- Firmware upgrade is available.
Technical Specs
Model |
UR908SS |
UR916SS |
UR924SS |
UR932SS |
UR940SS |
UR948SS |
UR960SS |
UR9120SS |
||||||
Targets |
1-7 |
1-15 |
1-23 |
1-31 |
1-39 |
1-47 |
1-59 |
1-119 |
||||||
Speed |
2GB/min. (33MB/sec.) *Actual performance is dependent on media transfer speeds. |
Specifications |
Capacity |
*Embedded controller is designed to support capacities up to 2TB. *Constant improvement supports latest market-available devices. |
Operating Type |
Supports PC link for monitoring. |
|
Stand alone operation |
||
Language Support |
English, Japanese |
|
Display |
Monochrome LCD Display |
|
Status LED |
LED(Red/Green) on each slot |
|
Control Button |
4 push buttons(▲, ▼, OK, ESC) |
|
Features |
Copy Function |
Quick Copy (Systems & Files Copy)/Whole Media |
Compare Function |
Bit by Bit data comparison |
|
Diagnostic Function |
Speed Test; Capacity Test; A2 Fake Card Test |
|
H3 Test: Read only testing |
||
H5 Test: Read & Write testing |
||
H6 Test: Read & Write testing without data area |
||
Erase Function |
Quick Erase; Full Erase; DoD Erase |
|
Format Function |
FAT16/32 Format |
|
Compatibilities |
Flash Devices Compatible |
SD memory card & MicroSD memory card, SDHC, SDXC |
Format Supported |
Quick Copy: FAT16/32/64, NTFS, Linux(Ext2/Ext3/Ext4) |
|
Whole Media Copy: All Formats |
||
File system supported |
All (Windows, Linux, Other stand-alone systems) |
|
Hardware Specifications |
Power Supply |
12V Adapter |
Working Temperature |
5°C ~ 45°C |
|
Storage Temperature |
-20°C ~85°C |
|
Working Humidity |
20% ~ 80% |
|
Storage Humidity |
5% ~ 95% |
|
Certification |
FCC, CE, RoHS |
