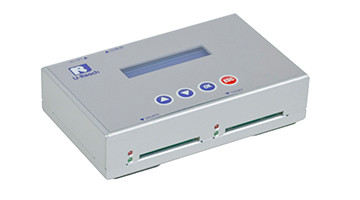

- U-Reach Intelligent 9 CFast Silver 1 Target
Product Description
Features:
- Stand-alone, FPGA-based operation (Non PC-based).
- Speed transfers up to 3.9GB/min.
- Dedicated bandwidth enables high-volume duplication without speed degradation.
- Quick copy (Data & System): Supports Windows (NTFS), FAT16/32/64, and Linux (ext2/3/4).
- Bit-for-bit copy mode which copies exactly like the master device.
- Supports all proprietary and unknown formats.
- Data Sanitization: quick erase, full erase, and DoD erase.
- Supports “quick copy” for Linux (ext2/ext3/ext4), NTFS and FAT16/32.
- Data Sanitization: quick erase, full erase, and DoD erase.
- Supports CFast devices
- Can handle the largest CFast card capacity on the market
The new CFast1-1 duplicator was designed with diversified media compatibility and high-speed performance in mind to not only flawlessly duplicate large capacity targets, but it is also portable so that you can copy CFast cards anywhere. The user-friendly interface offers stress free operation with no steep learning curve. Its ergonomic design facilitates efficient operation through simpler insertion and removal of flash cards and the new design allows for better space utilization.
The Intelligent 9 CFast duplicator is not only an efficient duplicator, but also has several ingenious smart device check functions: flash device quality check, real capacity, speed and device formatting.
Ultrahigh transmission speed
The U-Reach CFast duplicator can copy at up to 3.9GB/min depending upon the maximum read/write speeds of the CFast cards used.
Real multitask processing capability
Whether you are using copy, compare or format, each feature is independently executed. Each flash slot has an independent processing unit.
Non-PC based, with no risk of virus infection
One touch copy. Real time information displayed on the LCD screen
Ultrahigh speed bit-for-bit hardware comparison
Small footprint design allows for portability
Technical Specs
Model | UR902CS | |
Target | 1:1 | |
Specification | ||
Format Supported | Quick Copy: FAT16/32/64, Windows (NTFS), and Linux (Ext2 / Ext3 / Ext4) | |
Whole Media Copy: All Formats, including proprietary formats | ||
Operating Type | Stand-alone | |
Operation system supported | All (Windows, Linux, Other stand-alone systems) | |
Language Support | English, Japanese | |
Display | Backlit Monochrome LCD Display | |
LEDs | 2 LED (Red/Green) Indicators per Port | |
Control Button | 4 push buttons(▲, ▼, OK, ESC) | |
Compatibility | Flash Devices Compatible | CFast |
Maximum Speed Supported | 3.9GB/min | |
Copy Function | Quick Copy | Yes |
Whole Media Copy | Yes | |
Asynchronous Duplication | Yes | |
Format Function | Formats device to FAT16 or FAT32 | |
Power Supply | 5V 2A DC Adapter | |
Operating Humidity | Working | 5°C ~ 45°C |
Storage | (-)20℃~85℃ | |
Temperature Extremes | Working | 20% ~ 80% |
Storage | 5% ~ 95% | |
Regulations | FCC, CE, RoHS | |
Dimensions and Weight | 11*15*3.5 cm, 500g |
